9,000–12,000
stones / hour
Ultra High Speed
Equivalent to 8–10 experienced workers. Run 24/7 without fatigue, breaks, or consistency loss.
Learn more
Award-Winning Industrial Automation

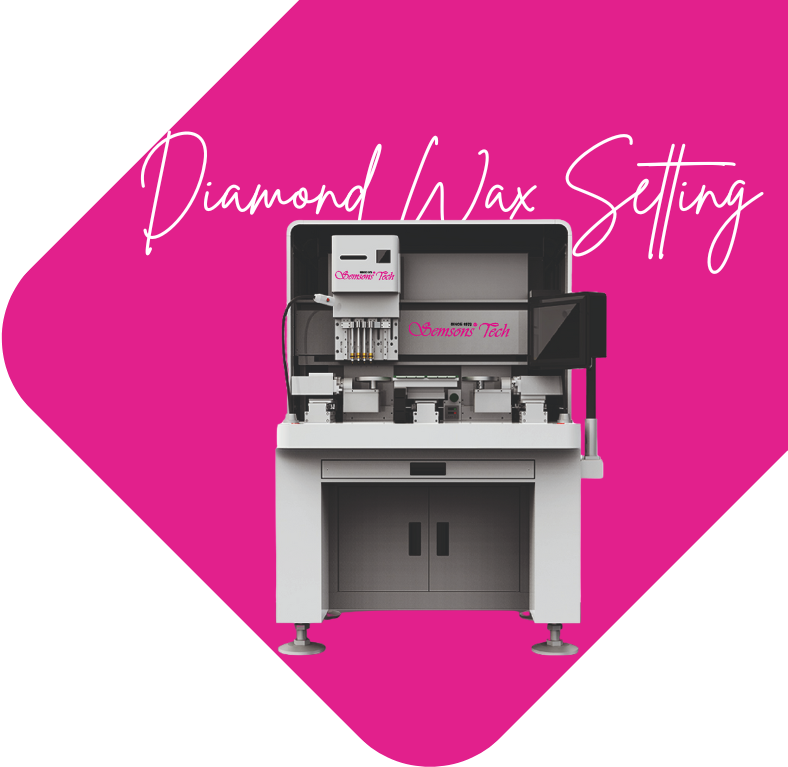

The World's Most
Precise Diamond
Wax Setting Machine
5-Axis linkage automation that sets 9,000–12,000 diamonds per hour with ±0.02mm precision accuracy. One machine replaces 8–10 skilled workers. Zero compromise.
12,000
Stones/Hour Max
±0.02mm
Drill Accuracy
5-Axis
CNC Linkage
40+
Countries
5-Axis CNC
350 KG Industrial
±0.02mm
Scroll to explore
12,000+
Stones / Hour
Maximum throughput
0.02±
mm Accuracy
Precision drilling
5
Axis Linkage
CNC movement
8–10
Workers Replaced
Per machine
3
Suction Nozzles
Simultaneous setting
4
Colors Supported
Multi-stone setting
0.8–3.0
mm Stones
Diamond size range
40+
Countries
Global installations
800–1,200
stones/hour per skilled worker
High
human error rate — missing stones, wrong placement
8–10
workers needed for comparable output
Inconsistent
quality across production batches
High
labour cost: ₹15,000–25,000/worker/month
Slow
learning curve — 3–6 months per worker
9,000–12,000
stones/hour — one machine
±0.02mm
intelligent precision every drill
1 operator
monitors the full operation
Zero-error
intelligent identification system
90%
reduction in labour cost
15 minutes
setup time, no expertise required
The Manufacturing Challenge
Jewellery Manufacturing
Was Broken.
We Fixed It.
Traditional diamond wax stone setting is a skilled, labour-intensive process that bottlenecks production, drives up cost, and introduces inconsistency. Even the most experienced setter manages just 800–1,200 stones per hour.
The Semsons Tech Mini Auto Diamond Wax Setting Machine eliminates this bottleneck entirely. Using our proprietary 5-axis linkage system and intelligent identification technology, one machine delivers what 8–10 workers could not — at a fraction of the operating cost, 24/7, with zero fatigue errors.
Core Engineering
7 Breakthrough Capabilities
in One Machine
Every feature engineered around one goal: maximum output, minimum error, zero compromise.
540°
rotation range
5-Axis Linkage System
Complex curved and flat wax models. Full 300×250×120mm travel with 150°–360° rotational control.
Learn more
Auto
detect & correct
Intelligent ID System
Self-research vision system automatically detects missing, misplaced, or incorrect diamonds. Prevents wrong drilling.
Learn more
4 Colors
0.8 – 3.0mm stones
Multi-Color & Size
Handle up to 4 different diamond colors simultaneously. Full size range from 0.8mm micro stones to 3.0mm feature diamonds.
Learn more
Industrial
grade controller
PLC Touch Screen
Industrial 5-axis motion controller with self-developed operating system. Intuitive touch interface for parameter control.
Learn more
Perfect
wax fusion
Tray Heating System
Integrated heated tray system ensures optimal wax temperature for superior stone adhesion. Eliminates stone fall-off during casting.
Learn more
±0.02mm
drill accuracy
Precision Drive System
High-end servo drive with precision screw guide transmission. Industrial-grade consistency across millions of operations.
Learn more
Human-like
setting pressure
Manual-Strength Simulation
Replicates the exact pressure characteristics of a master setter's hand, ensuring stone security without wax damage.
Learn moreEngineering Specifications
Built to the
Highest Industrial Standard
Every component selected for longevity, precision, and industrial-grade performance. From the servo drive to the precision screw guide — no compromise.
| Workbench | Five-axis linkage |
| Speed | 9,000 – 12,000 drills/hour |
| Suction Nozzles | 3 suction heads |
| Accuracy | ±0.02 mm |
| Control System | Industrial 5-axis motion controller |
| Operating System | Semsons Tech proprietary OS |
| Drive System | High-end servo drive |
| Transmission | High-precision screw guide |
| Travel | 300×250×120mm / 150°–360° |
| Power | AC220V/50Hz — 1.3kW |
| Air Pressure | 80 psi (0.4 MPa) |
| Machine Size | 780 × 730 × 1,400 mm |
| Weight | 350 KG |
Speed Output
9,000–12,000/hr
vs 1,200/hr manual (×10 faster)
Drill Accuracy
±0.02mm
Near-perfect precision every time
Labour Replacement
8–10 workers
90% labour cost reduction
Stone Size Range
0.8–3.0mm
Full jewellery production range
Operational Reliability
24/7 operation
Industrial-grade uptime
Machine Footprint Reference
780
mm Width
730
mm Depth
1400
mm Height
Who We Serve
Trusted Across the Global
Jewellery Manufacturing Ecosystem
💎
Diamond Jewellery Factories
👑
Luxury Production Houses
🔧
CAD/CAM Manufacturers
🏭
Mass Production Plants
🌍
Export-Oriented Units
⚙️
Jewellery OEM Suppliers
Active Installations — Global Reach
🇮🇳 India
🇦🇪 UAE
🇮🇹 Italy
🇹🇷 Turkey
🇹🇭 Thailand
🇨🇳 China
🇺🇸 USA
🇭🇰 Hong Kong
🇯🇵 Japan
🇩🇪 Germany
🇬🇧 United Kingdom
🇫🇷 France
🇸🇬 Singapore
🇧🇪 Belgium
🇨🇭 Switzerland
🇿🇦 South Africa
🇧🇷 Brazil
🇲🇾 Malaysia
Return on Investment
The Numbers
Make the Decision
For You
A typical jewellery manufacturer running 8-hour shifts replaces ₹15–25 lakh/year in labour costs with one Semsons Tech machine. Most installations pay back within 12–18 months.
Calculate Your Specific ROI12–18
Months
Average payback period
90%
Reduction
In per-stone labour cost
10×
Faster
Than manual setting speed
24/7
Operation
Continuous production capability
Ready to Transform Your Production?
Get a Personalised
Quote for Your Factory
Tell us about your production requirements. Our engineering team will analyse your current workflow and propose a custom automation solution.
